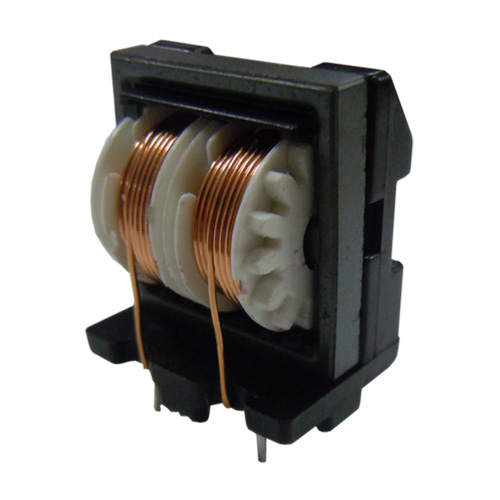

ET Series ET24,28,35
Feature:
- Closed magnetic circuit with frame construction made of ferrite, Use the flat wire, improving the space factor
- Single-phase winding, thereby dramatically reduce stray capacitance
- Achieve a high inductance in both common mode and normal mode
- Epoxy coating (UL94 V-0), Plastic coil former (UL94 V-0)
- Design complies with EN 60938-2 and UL 1283
Application: Common mode noise filter for TV, VCR, Switching power supply, NC machine, PC & PC related device, measurement equipment and control unit

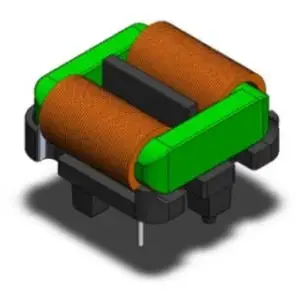

SQ Series
Feature:
- Closed magnetic circuit with frame construction made of ferrite, Use the flat wire, improving the space factor
- Single-phase winding, thereby dramatically reduce stray capacitance
- Achieve a high inductance in both common mode and normal mode
- Epoxy coating (UL94 V-0), Plastic coil former (UL94 V-0)
- Design complies with EN 60938-2 and UL 1283
Application: Common mode noise filter for TV, VCR, Switching power supply, NC machine, PC & PC related device, measurement equipment and control unit

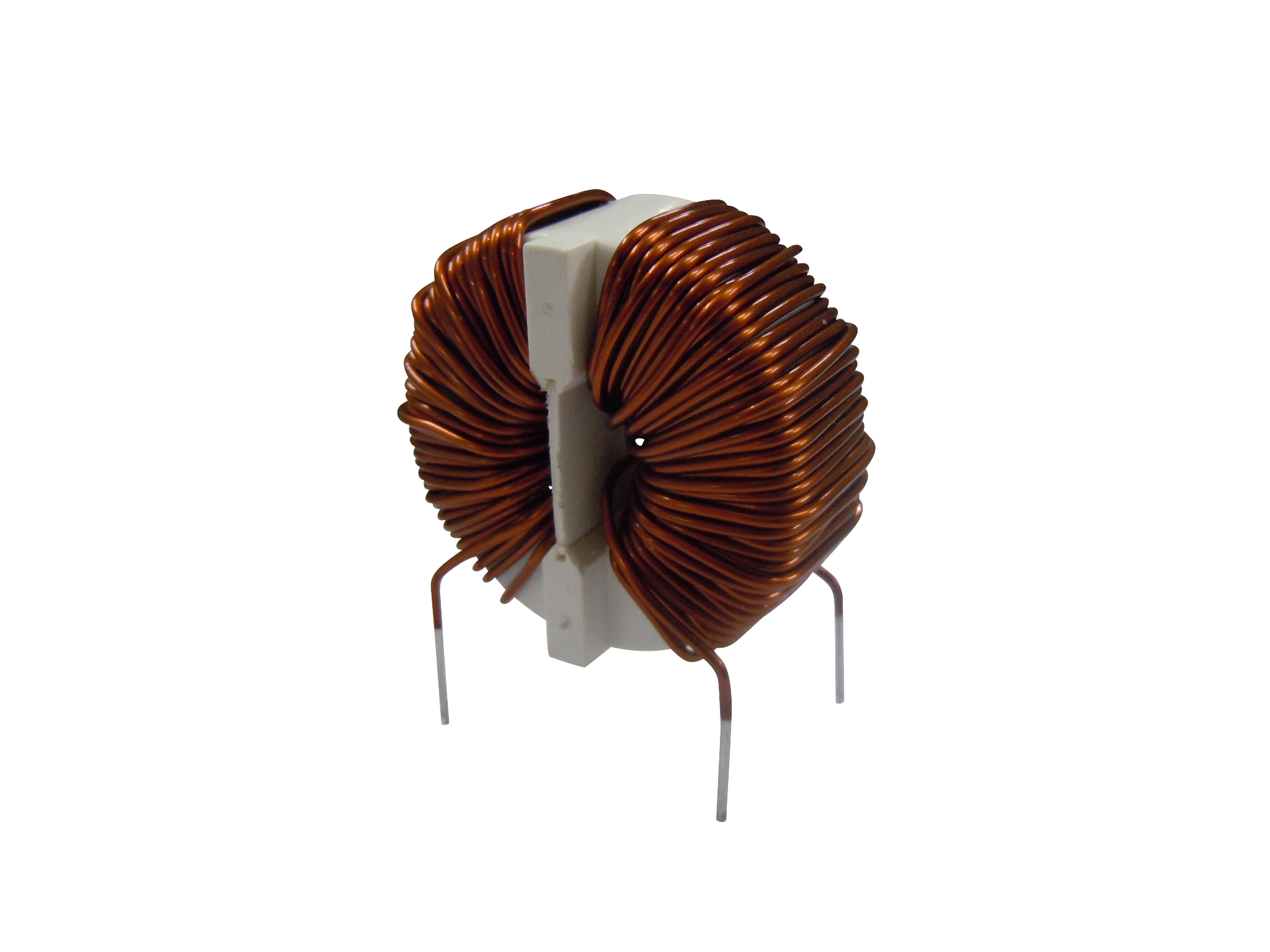

Toroidal Series
Feature: High current, compact, high impedance broadband shielding capability
Application: Switching power supply, power wire input and output filters
UT Series
Feature: Core closed magnetic circuit design, coil structure is in line with safety requirements, UL certification of insulating materials.
Application: Switching power supply, TV, VCR, PC, UPS, OA equipment
UU Series
Feature: High current, compact, high impedance broadband shielding capability
Application: Switching power supply, power wire input and output filters
